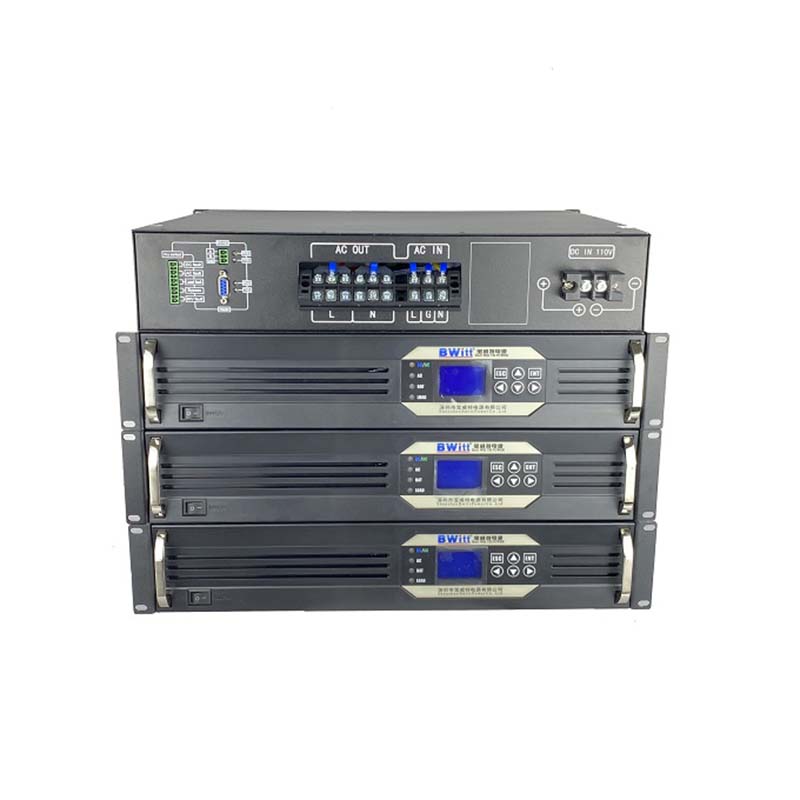

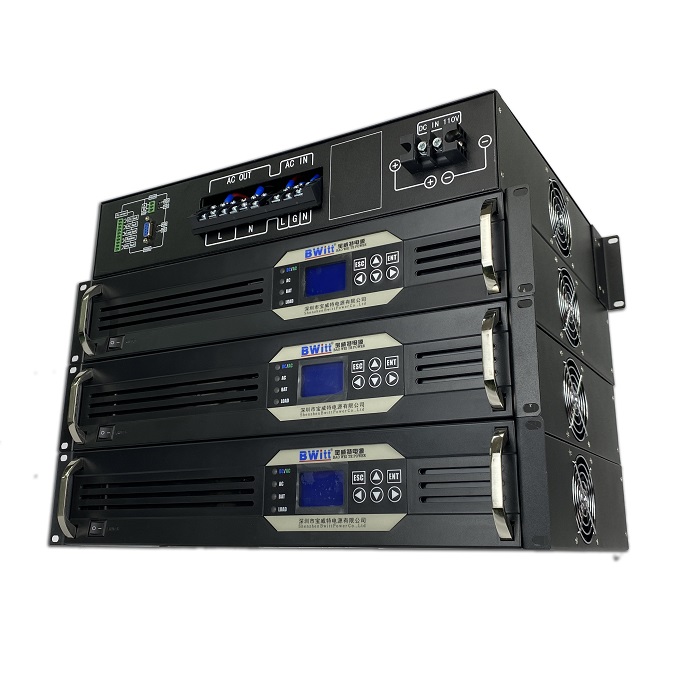

Ac Inverter System Telecom Sine Wave Inverter 110vdc To 230vac 1-10kva Pure Sine Wave Inverter
See more pictures
Description:

The pure sine wave DT-1000 Series inverters are BWITT new expand customize inverter. This Series is a professional 19” rack enclosure with a wide range of options to suit applications.

Model:
  • 110/230-1KVA
  • 110/230-2KVA
  • 110/230-3KVA
  • 110/230-4KVA
  • 110/230-5KVA
  • 110/230-6KVA
  • 110/230-8KVA
  • 110/230-10KVA
- +
0
- +
0
- +
0

Contact Now Download As PDF
Product Detail
Parameters
Feedback Now

Ac Inverter System Telecom Sine Wave Inverter 110vdc To 230vac 1-10kva Pure Sine Wave Inverter

Product Description:

The pure sine wave DT-1000 Series inverters are BWITT new expand customize inverter. This Series is a professional 19” rack enclosure with a wide range of options to suit applications.

This type Rack mount Inverter with a new generation of dual input inverter solution designed for the field of communication applications, which is suitable for the high reliability of the communication system. The solution is equipped with 230V AC power supply and 110V DC power Input , which fills the gap between the traditional UPS power supply and common pure sine wave inverter solutions.

Product Feature:

  • Standard 19” Rack mount 2 RU Chassis;
  • True sine wave output (T.H.D < 3%);
  • Large 128*64 digital Lcd display data information,4 led display working;
  • 5 Routes Dry contact for system (DC input fault, AC input fault, overload information, by-pass information and output fault);
  • RS232 and RS485 & Optional SNMP communication Port;
  • Power-on self-test, Soft output start,Start auto restart while Ac or Dc is recovering;
  • Auto switch function: DC to AC, AC bypass, less than 6ms;
  • Real-time monitoring of the system operating status,Audible and visual alarm;
  • Record the historical alarm message and can be queried;
  • Build in voltage regulator Stabilize AC voltage;
  • Maintenance bypass /DC available;
  • Protection :Short load protection, over load protection, battery over/under voltage protection, over current, over temperature;
