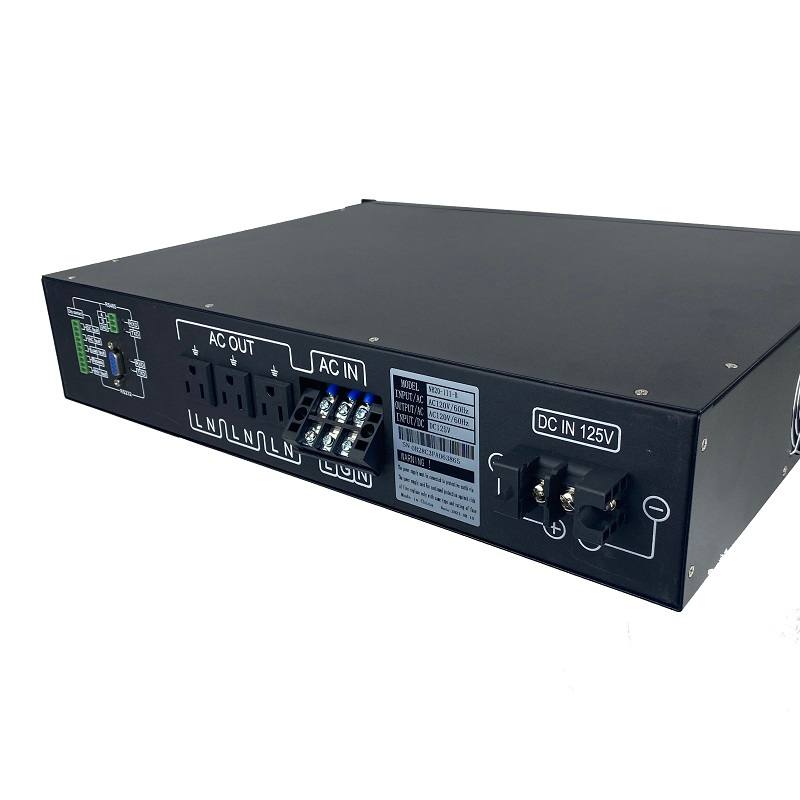

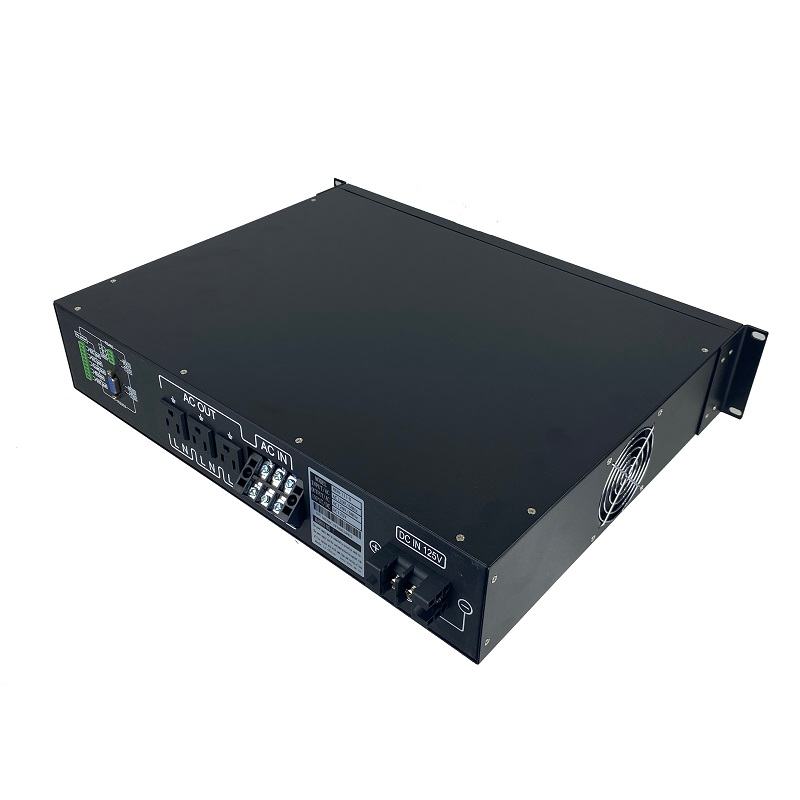

Factory price 24V input 230V output inverter manufacture AC input pure sine wave inverter
See more pictures
Description:

Pure sine wave inverter is a new generation of dual input inverter solution designed for the field of communication applications,
which is suitable for the high reliability of the communication system. It uses a novel design structure that helps users to
provide clean, stable and durable AC power for critical loads, and has the same high reliability as the DC power supply system.

Model:
  • 24/230V-1KVA
  • 24/230V-2KVA
  • 24/230V-3KVA
- +
0
- +
0
- +
0

Product Detail
Parameters
Inquiry Now

Factory price 24V input 230V output inverter manufacture AC input pure sine wave inverter

Pure sine wave inverter is a new generation of dual input inverter solution designed for the field of communication applications,
which is suitable for the high reliability of the communication system. It uses a novel design structure that helps users to provide clean, stable and durable AC power for critical loads, and has the same high reliability as the DC power supply system.

  • Feature:
  • Standard 19” Rack mount2 RUChassis;
  • True sine wave output (T.H.D < 3%);
  • Large 128*64 digital Lcd display data information,4 led display working;
  • 5 Routes Dry contact for system (DC input fault, AC input fault, overload information, by-pass information and output fault);
  • RS232 and RS485 & Optional SNMP communication Port;
  • Power-on self-test, Soft output start,Start auto restart while Ac or Dc is recovering;
  • Auto switch function: DC to AC, AC bypass, less than 6ms;
  • Real-time monitoring of the system operating status,Audible and visual alarm;
  • Record the historical alarm message and can be queried;
  • Build in voltage regulator Stabilize AC voltage;
  • Maintenance bypass /DC available;
  • Protection :Short load protection, over load protection, battery over/under voltage protection, over current, over temperature;
