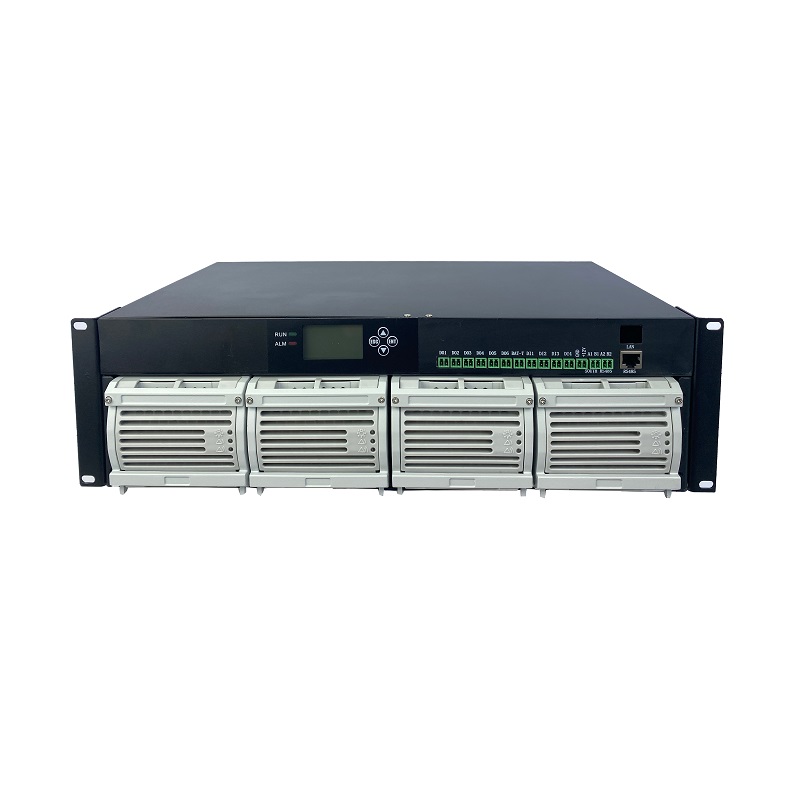

Rectifier 220V AC 48V DC 1.8KW 100 amp dc power supply Modular Telecom Rectifier System
Embedded DC Power System is widely deployed in the Telecom/Industrial environment today. The system can be composed of one or more rectifier modules and monitoring modules. The power of the rectifier system can vary, depending on the number of rectifier modules. The system consists of power distribution units, rectifier modules) and monitoring modules. Configuration can be customized
Product name:
|
Rectifier 220V AC 24V DC 1.8KW 100 amp dc power supply Modular Telecom Rectifier System
|
|
100 amp dc power supply
|
|
dc power supply
|
|
Telecom Rectifier System
|
Rectifier Module
|
BR241800 1PCS
|
Efficiency
|
93.2%
|
Power Capacity(Max)
|
1800W
|
Input Current
|
8.18A
|
Input Protection (Recom)
|
10.2A
|
Height
|
88mm(2RU)
|
Width
|
482mm(19 Inch)
|
Depth
|
410mm
|
Weight
|
15KG Appro.
|
Classification
|
IP21
|
Customize Range:
Regard as HF Switching Power Supply / rectifier. we can customize are as following
1. Input::220VAC +/-15%, 50/60HZ
Input::110VAC +/-15%, 50/60HZ
2. Output:24VDC, 10A/20A/30A/40A/50A/60A/120A/180A/240A/300A
Output:48VDC, 10A/15A/20A/25A/30A/50A/60A/100A/150A/200A
Output:110VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output:125VDC, 20A/30A/40A/60A/80A/100A/120A/140A/200A/300A
Output:220VDC, 10A/20A/30A/40A/60A/70A/100A/120A/150A
