Through conversion on the input DC power, the Pure Sine inverter offers users stable and Non-distorted AC power. In case of a power failure in business places, it offers key devices the power of flexible output voltage and frequency.
Suitable to COMMUNICATION FIELD POWER FROM 1-10KW
1. Telecom station/base/ Cable Equipment
2. Communication Station.
3. Computer data center
4. SCADA Networks and Data Equipment
5. Phone /cell base
6. Radio Base stations/ Cell Sites
7. Monitoring center room
8.City WIFI device
9. Emergency communication car
10. Railway & metro
11. Distributed Antenna Systems
12. Marine & offshore
13. Building Management Systems
14. Fire Alarm Systems
15. power utilities System Control /field
16. power plant/station
17.Power monitoring system
18.Solar power system
19.Wind energy system
◆Digital control: It adopts 32-bit DSP full digital and high-frequency SPWM technology, featuring strong anti-interference ability, fast calculation speed, high intelligence, accurate control precision and pure output waveform.
◆N+1 parallel redundant design: It can form an N+1 parallel redundant power supply system. The modules are backup each other, with high reliability and flexible configuration.
◆No master-slave parallel technology: The operation and parallel connection of each module are independently controlled by the built-in DSP, no single point of failure, independent flow between modules.
◆With hot plugging: no need to do any parameter setting and operation, plug and play, the module automatically enters the normal working state, maintenance and replacement is simple and fast.
◆ Module built-in bypass: Users can choose inverter priority or bypass priority.
◆Monitoring management: indicator panel, fault sound and light alarm, RS485 communication interface and fault dry contact.
◆Protection function: It has the functions of input over-voltage, output over-voltage, over-temperature, short-circuit and so on.

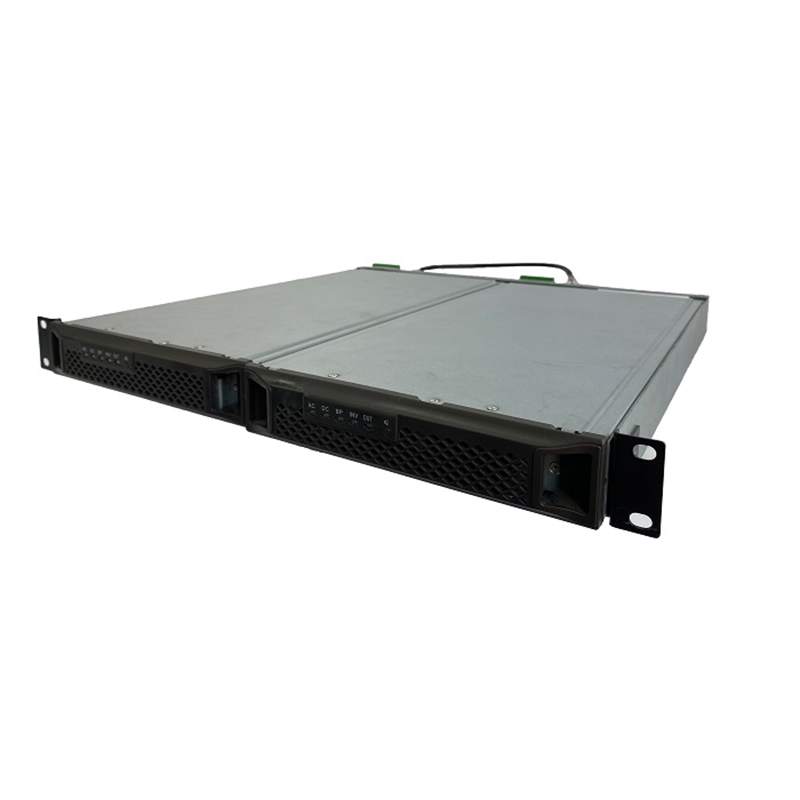

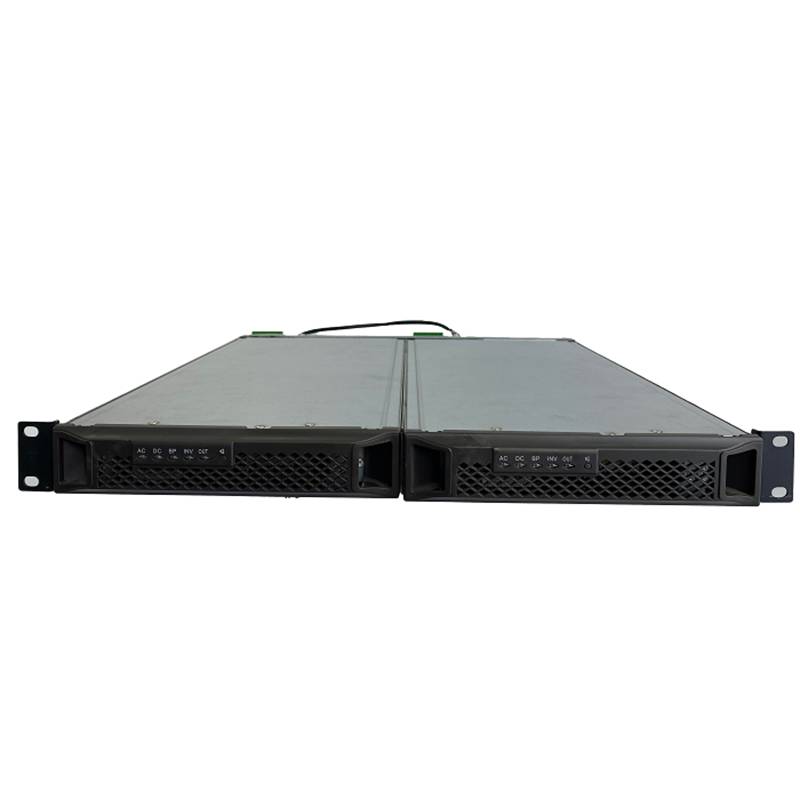

◆High power density: 1/2 19〞 width design, the volume is only half the width of the conventional inverter, saving space and convenient parallel.
If you have some problems about DC 48V 10000 Watt inverter 10KVA pure wave sine power inverter telecom 4U rack mount inverter, or want to know more details about Rack mount Telecom Inverter,Telecom Rectifier System,Home Pure Sine Wave Inverter,Solar MPPT INVERTER,DC to DC converter, etc. Welcome to contact us!
Looking forward to your inquiry !
|Product form||Rated power||1KVA||2KVA||3KVA|
|Input parameter||DC Input Voltage||48VDC/220VDC|
|DC Input Range||42～59VDC/190～270VDC|
|Bypass Input Range||176～264(Can be adjustable according customer)|
|Bypass Switch time||5～12ms|
|Ac output||Rate output Voltage||220VAC|
|Rate output Frequency||50Hz|
|Waveform distortion||Resistance full load＜3%，nonlinear full load＜5%|
|Dynamic response||Voltage transient range＜3%，transient response recovery time≤60ms（load from 0 to 100）|
|Parallel uneven flow||＜3% rated current RMS|
|Overload capacity||Load current ＜105%, continuous work Load current 105～125%, continuous work 10min shutdown Load current 125～150%，continuous work after 1min shutdown Load current＞150%，after 20ms shutdown|
|Protection function||Input connection protection, input under voltage and over-voltage protection, output overload protection, output short circuit protection, over temperature protection|
|Work environment||Insulation strength||2KVac，1min|
|Noise (1 m)||＜45dB|
|Operating ambient temperature||－10～50℃|
|Transport and storage temperature||－40～70℃|
|Relative humidity||0～90%, no condensation|
|Relative altitude (M)||≤3000m，1500～3000m, 1% decrease in output for every 100 m increase|
