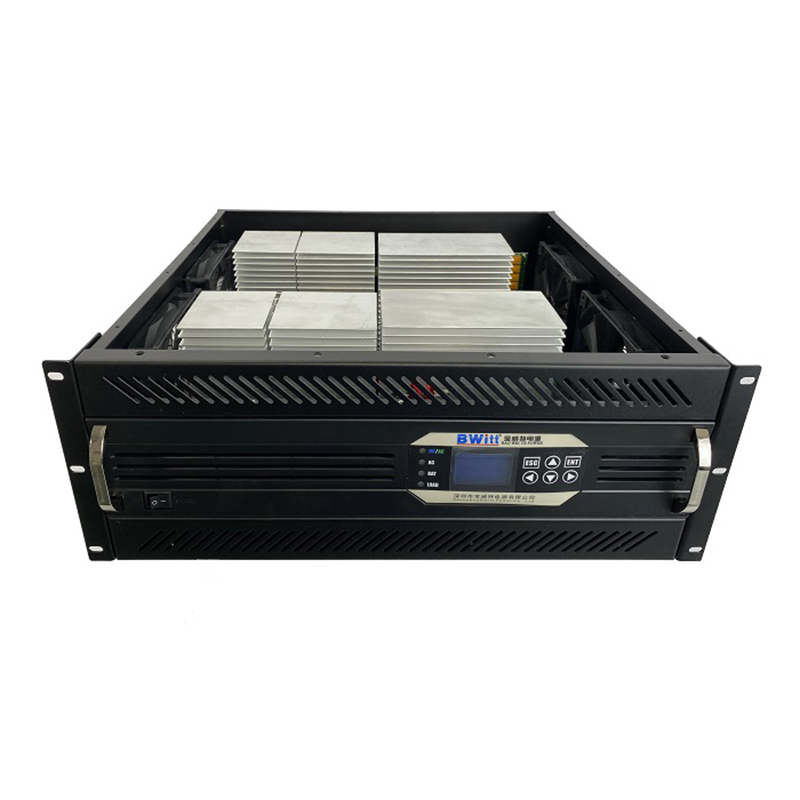

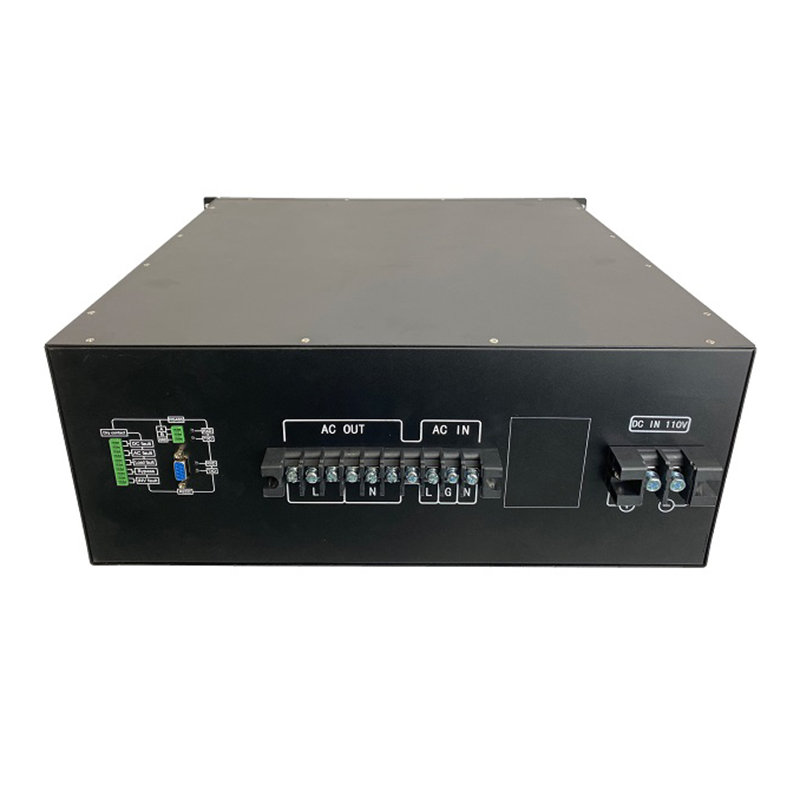

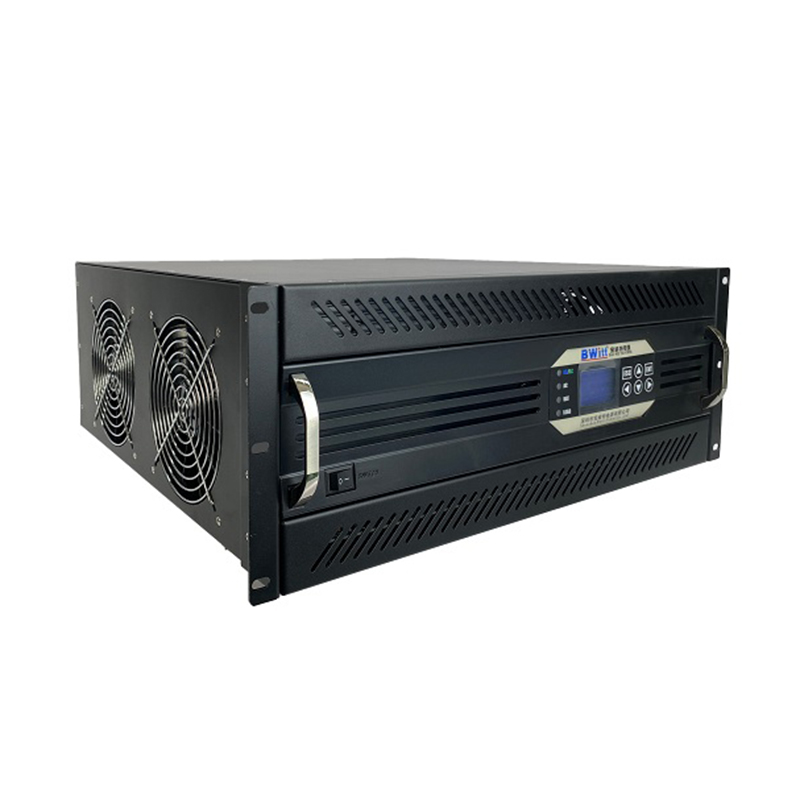

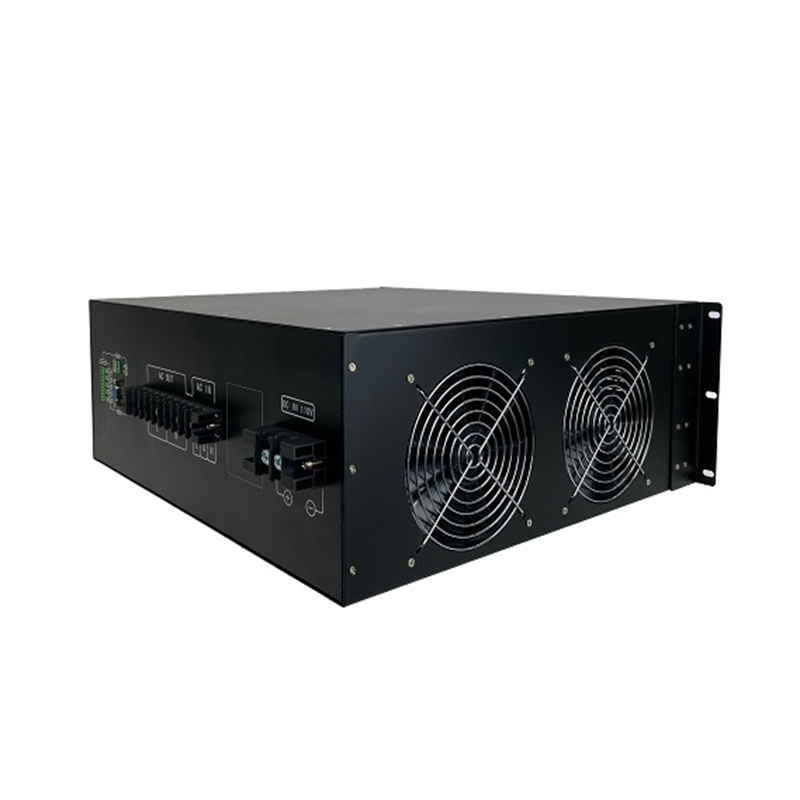

DC 48V 10000 Watt inverter 10KVA pure wave sine power inverter telecom 4U rack mount inverter
See more pictures
Description:

Telecom DC 48V 10000 Watt inverter 10KVA is a new generation of dual input inverter solution designed for the field of communication applications, which is suitable for the high reliability of the communication system. The solution is equipped with a 110V/220V/230V AC power supply and a 110V DC power supply, which fills the gap between the traditional UPS power supply and common 2400W pure sine wave inverter solutions.

Model:
  • 48/220v-10kva
  • 48/230v-10kva
- +
0
- +
0
- +
0

Contact Now Download As PDF
Product Detail
Parameters
Feedback Now



It uses a novel design structure that helps users to provide clean, stable and durable AC power for critical loads, and has the same high reliability as the DC power supply system. The design characteristics of the dedicated communication 2400W pure sine wave inverter ensure the seamless conversion between the AC and DC power supply, almost no conversion delay, and no need to use the static switch.

Applications


Suitable to COMMUNICATION FIELD POWER FROM 1-10KW
1. Telecom station/base/ Cable Equipment
2. Communication Station.
3. Computer data center
4. SCADA Networks and Data Equipment
5. Phone /cell base
6. Radio Base stations/ Cell Sites
7. Monitoring center room
8.City WIFI device
9. Emergency communication car
10. Railway & metro
11. Distributed Antenna Systems
12. Marine & offshore
13. Building Management Systems
14. Fire Alarm Systems
15. power utilities System Control /field
16. power plant/station
17.Power monitoring system
18.Solar power system
19.Wind energy system

Product Advantages

● True sine wave output (T.H.D < 3%);
● Large 128*64 digital Lcd display data information,4 led display working;
● Standard 19” Rack mount case;

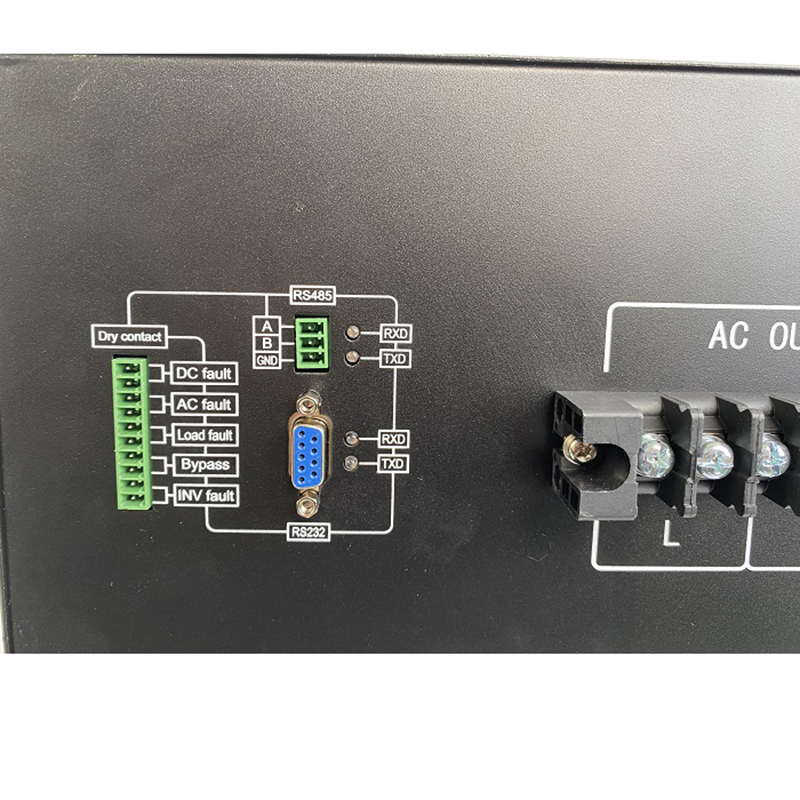

● 5 Routes Dry contact for system (DC input fault, AC input fault, overload information, by-pass information and output fault)
● RS232 and RS485 & Optional SNMP communication Port;
● Power-on self-test, Soft output start;
● Auto switch function: DC to AC, AC bypass, less than 5ms;
● By-pass AC 220V input filtering;
● Real-time monitoring of the system operating status;
● Audible and visual alarm;
● Record the historical alarm message and can be queried;
● Start auto restart while Ac or Dc is recovering;
● Automatic start temperature control fan;
● Build in voltage regulator Stabilize AC voltage;
● Maintenance bypass /DC available;
● Protection :Short load protection, over load protection, battery over/under voltage protection, over current, over temperature;
● Unattended operation: the system switches automatically to provide AC Power to the load between the DC input and AC input;

If you have some problems about DC 48V 10000 Watt inverter 10KVA pure wave sine power inverter telecom 4U rack mount inverter, or want to know more details about Rack mount Telecom Inverter,Telecom Rectifier System,Home Pure Sine Wave Inverter,Solar MPPT INVERTER,DC to DC converter, etc. Welcome to contact us!

Looking forward to your inquiry !
