AC220V TO DC24V-30AS Embedded Power System rectifier system for telecom
See more pictures
Description:

Model:
  • 220Vac/24Vdc-30AS
- +
0
- +
0
- +
0

Product Detail
Parameters
Inquiry Now

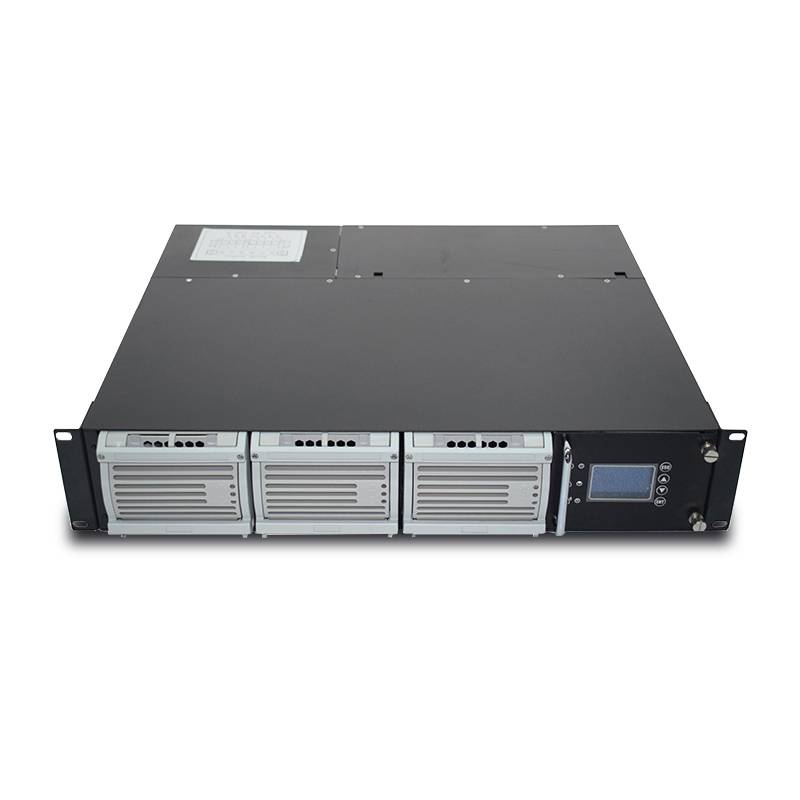

AC220V TO DC24V-30AS Embedded Power System rectifier system for telecom

This 220Vac/24Vdc-30AS Embedded Power Syste is widely deployed in the Telecom/Industrial environment today, a new generation “Green & Energy Saving” system, aiming at outdoor low power mobile Telecom/Industrial power market, meeting the trend of Telecom base station development, saving construction cost and shortening time. The system is highly adaptable with environment, features with wide operating temperature range, meeting the demand of high level users.



Item Description Note
Controller M30.1.2V1 1 pc
Rectifier BR241800 1pc
Distribution Unit AC Input: 220Vac
DC Load distribution: 135A×3 Rail-mount Terminal
  Battery distribution:135A×1 Rail-mount Terminal

Features:

Monitors the power system operating status in real time ;

Detects and reports alarms in real time l

Supports multiple remote management modes.

Supports flexible rectifier management. l

Supports effective energy conservation management. l

Supports comprehensive battery management. l

Supports intelligent temperature control management. l

Supports flexible and programmable logic control.

Supports detailed data records and performance statistics

Supports Control the voltage, current, boost and float status of rectifier module;

Supports Dry Contact ,Modbus RTU Rs232&485,SNMP V2C ,V3 , HTTP WEB
