BWT220/220-10AS -100AS Rectifier system ac dc power supply
See more pictures
Description:

Modular rectifier System is a modular Extra-able power system based on building blocks for both 19 inch system solutions.

Model:
  • AC220V/DC220V-10AS
  • AC220V/DC220V-20AS
  • AC220V/DC220V-30AS
  • AC220V/DC220V-40AS
  • AC220V/DC220V-60AS
  • AC220V/DC220V-100AS
- +
0
- +
0
- +
0

Product Detail
Parameters
Inquiry Now

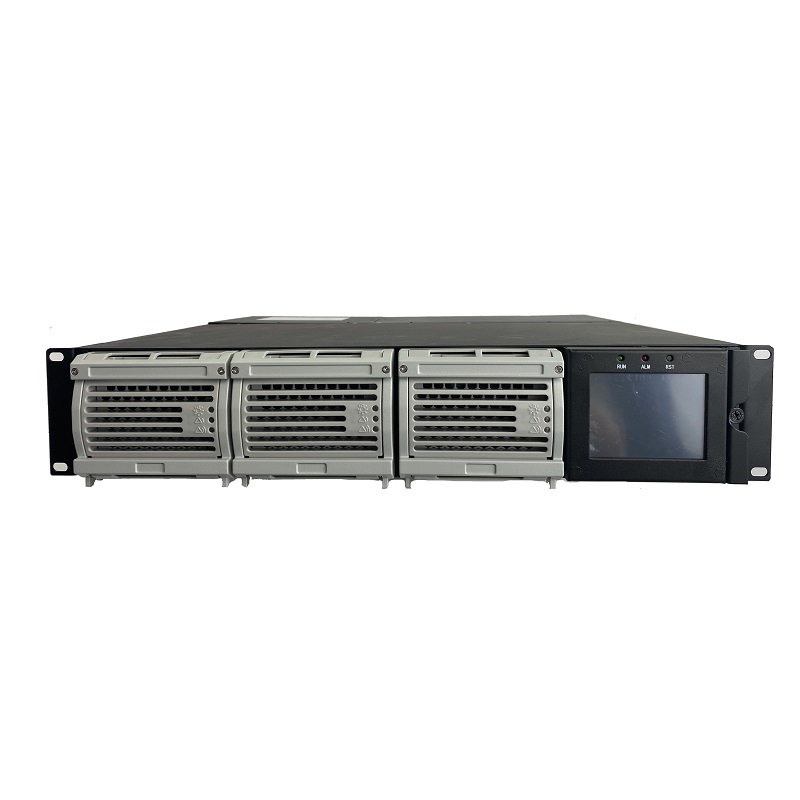

BWT220/220-10AS -100AS Rectifier system ac dc power supply

Modular rectifier System is a modular Extra-able power system based on building blocks for both 19 inch system solutions.

It is consist of Rectifier module & Control Monitor & 19’’framework. This rectifier system 90~290 Vac Single phase AC supply voltages into stable nominal 220VDC voltage adjustable to the needs of the application. All versions provide options for alarming and battery temperature probes.



Feature

  • Wide operating range of AC input voltage: 90~290Vac
  • ucurrent/voltage switching tech with high efficiency≥95%
  • uPerfect battery management, battery temperature
  • uMultiple communication ports, easy for networking and remote ModbusRS485 、TCP/IP 、YDN23 (YD/T 1363) protocol
  • uTemperature compensation, LVLD and LVBD protection,
  • uAutomatic battery test function, cycle test, quick test
  • uSupports power system &module sleep, efficiency mixing, energy saving
  • uSupport real-time detection of the operating status of the power system
  • uSupport alarm real-time detection and reporting
  • uHot-swap able
  • uInput over/under voltage protection
  • uOutput over voltage protection
  • uOutput over current protection
  • uOutput short circuit protection
  • uAuto current sharing, parallel operation
